Beschrijving

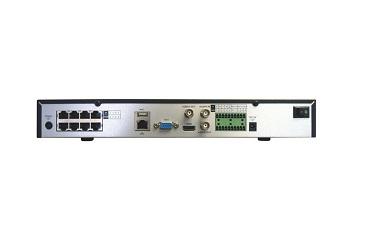

Triax 301046 NVR 4 kanaals IP digital recorder
This Triax NVR’s are high performance network video recorders, this combined with H.264 video compression,
highcapacity hard disk storage, TCP / IP transmission, embedded Linux operating system and a variety of
other advanced technologies in the electronic information industry, all those ensure a high quality,
low bit rate video storage characteristics, and good system stability.
This product complies with GB 20815- 2006 standard video security surveillance digital video recording.
At the same time, the product supports the ONVIF protocol based on’ ONVIF ™ Core Specification’ Version 2.2
and is compatible with the network cameras which supports ONVIF protocol.
This series product support local preview, multiple window display, recorded file local storage,
remote control and mouse shortcut menu operation, remote management and control function. recording,
playback, monitoring, synchronization of audio and video.
Features and Benefits:
-Compact IP DVR
-H.264 720p real-time recording
-TRIAX P2P mobile App
-Support ONVIF
-Compatible with High Resolution 4MP cameras
-TRIAX common menu structure
-CAT5e cabling 90m
-PoE to 8 Channels
-Live view, Motion detection and Alarm activation
-Choice of HDD
