Beschrijving
Intellian I9P autoskew 85cm, quad out
Intellian’s i9 offers extended coverage satellite TV reception, perfect for larger recreational or commercial vessels. With integrated GPS and Auto Skew Control, the Intellian i9P allows for fastest and reliable satellite tracking in the roughest sea conditions
The i9 Highlights
- The i9P version is equipped with Automatic Skew Control, which allows for better satellite tracking across a wider area of operation
- Auto satellite switching function for multiple satellites from your remote control
- Compatible with leading satellite TV service providers around the world
- 30° per second turn rate ensures signal tracking at high speeds and in rough seas
- Simplicity of design, no external compass or rate sensors required
- Built in GPS enables faster signal acquisition
- Built-in HD module for Ku-band
Professional Grade
Renowned for its professional grade build and extensive coverage capability, the i9 is the ideal choice for commercial vessels venturing far offshore. Improve crew morale with the comforts of home wherever you go.
WorldView Capable
The i9 comes standard with Intellian’s patented WorldView LNB, one of the most significant advances in TVRO antenna technology in the last decade. This ground-breaking, proprietary device receives multi-band and multi-polarization Ku-band satellite TV services around the globe. Vessel operators are no longer required to manually switch out the LNB inside the antenna dome or re-wire the system when the vessel travels from region to region.
i9 Features
Fully Automated System
- Automatic Satellite Search and Identification Function
- 2-axis high speed tracking system
High Performance Antenna
- 85 cm (34 inch) diameter parabolic antenna for receiving the Ku-Band satellite signals
- Built-in HD module for Ku-band HD TV reception
iQ²: Quick&Quiet℠ Technology
- iQ² Technology allows you to tune in quickly, maintain a solid signal lock, and enjoy your favorite TV programming in quiet comfort
- The Wide Range Search (WRS) Algorithm delivers the fastest signal acquisition available anywhere
- Dynamic Beam Tilting (DBT) technology uses intelligent, real-time beam analysis to ensure superior signal quality while eliminating intrusive background noise experienced with conventional antennas
Antenna Control Unit
- Simple to view satellite information and controls
- Easy antenna status check and automatic diagnostics
- Monitor and update using the Aptus PC software via the serial connection

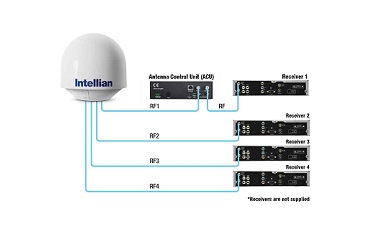

Multiple Receiver Capability
- Multiple receivers and TVs can be connected using a multiswitch or the Intellian MIM (Multi-Satellite Interface Module)
- Using the MIM a master receiver can be selected to control the target satellite
- In North America, when using Dish Network or Bell TV, a MIM is required, enabling automatic satellite switching
Built-in GPS and NMEA 0183 Interface
- The i9 includes a built-in GPS inside of the Antenna Unit for faster signal acquisition. The ship’s GPS can also be connected through the NMEA 0183 port on the rear panel of the ACU
Stylish Radome
- 113 cm (44.5 inch) antenna radome diameter
- Antenna weighs less than 55 kg (212lbs)
Three Year Global Warranty
- Industry leading 3-year parts and workmanship guarantee with a 1-year labor warranty for all antenna systems, ensuring peace of mind with your hardware investment
Datasheet: Intellian i9
